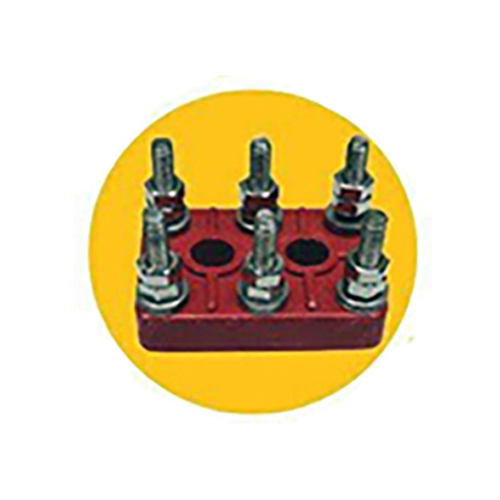

EF KH Panel 2 6 Stud Type

Get a Price/Quote

EF KH Panel 2 6 Stud Type Specification

Feature
High Insulation, Corrosion Resistant, Durable

Operating Temperature
-10C to +70C

Shape
Rectangular

Efficiency
High Insulation Efficiency

Insulation Material
DMC/Bakelite

Surface Finish
Matte/Glossy

Humidity %
Up to 90% RH (non-condensing)

Mounting Type
Panel Mount

IP Rating
Not Rated (Indoor use)

Connector Type
Stud Type

Product Type
KH Panel 2-6 Stud Type

Application
Electrical Distribution Panel, Terminal Connections

Protection Level
Standard insulation protection

Frequency (MHz)
50-60 Hz

Rated Voltage
up to 415V AC

Output Type
Terminal Output

Color
Red Base with Metallic Studs

Dimension (L*W*H)
Approx. 60mm x 32mm x 22mm

Weight
Approx. 150g

Input Voltage
Up to 415V

Phase
Single Phase / Three Phase (as applicable)

Size
Standard, for Panel Use

No Of Poles
2 Poles

Material
DMC (Dough Moulding Compound)/Bakelite

Connection Type
Screw Stud/Terminal

Flame Retardant
Yes

Service Life
>10 years under standard use conditions

Compliances
RoHS Compliant, IS Standard

Stud Material
Plated Steel/Nickel Plated Brass

Resistance to Tracking
High Surface Resistance

Screw Type
Hex Nut and Washer

Number of Studs
6 Studs

Current Rating
Up to 63A (as per stud size)

Storage Temperature
-20C to +80C

About EF KH Panel 2 6 Stud Type

Pick Yours today-EF KH Panel 2 6 Stud Type is engineered for enviable electrical distribution. Featuring lofty standards with six plated steel or nickel-plated brass studs, it offers a first-rate current rating up to 63A dependent on stud size. Redeem the lowest price for a product that boasts high surface resistance, impressive durability, and a flame-retardant, corrosion-resistant body. The panel's matte/glossy DMC/Bakelite build ensures longevity and reliability indoors. Fully RoHS compliant, this stud panel is a superb choice for terminal connections, panel use, and safe connection in both single and three-phase applications.

Robust Application & Versatile Usage

The EF KH Panel 2 6 Stud Type is specifically used in electrical distribution panels and terminal connections, excelling in both general and specific wiring tasks. Suitable for panel mounting in residential, commercial, or industrial setups, it accommodates standard voltage up to 415V AC and current up to 63A. Whether supporting single or three-phase connections, this panel provides long-lasting, insulated, and efficient output through its high-quality stud terminals.

Supply, Payment, and Export Policy

Our supply ability caters to wholesalers, suppliers, and manufacturers serving the local and export market while maintaining first-rate standards. Payment terms are designed for ease, accommodating multiple transaction preferences to reduce expenditure friction. Sample policies are flexible for bulk orders, ensuring reliable product evaluation before commitment. With regular export supply to India's expanding market, the EF KH Panel 2 6 Stud Type meets stringent industry criteria for secure and sustained panel connections.

FAQ's of EF KH Panel 2 6 Stud Type:

Q: How is the EF KH Panel 2 6 Stud Type installed in electrical distribution panels?

A: Installation is straightforward, requiring panel mounting with screw studs/terminals. The hex nut and washer make connection secure and reliable.

Q: What benefits does the EF KH Panel 2 6 Stud Type offer compared to conventional connector types?

A: This panel type provides enviable insulation, corrosion resistance, long service life, and supports high currents, making it first-rate for both demanding and general use.

Q: Where can the EF KH Panel 2 6 Stud Type be used most effectively?

A: It is ideally used indoors for electrical distribution panels and terminal connections in residential, commercial, or industrial environments.

Q: When should I consider using a 6 stud panel over fewer stud types?

A: Choose a 6 stud type when handling multiple wiring requirements, higher current distribution, or when a more versatile connection option is needed.

Q: What is the process for redeeming a sample for bulk orders?

A: Contact our sales team to request a sample. We offer flexible sample policies tailored for bulk buyers, allowing you to evaluate the product before committing to larger expenditures.

Q: How does the EF KH Panel ensure electrical safety and longevity?

A: Its high insulation material, flame-retardant design, and resistance to tracking ensure safety and a service life exceeding 10 years under standard conditions.
